Description

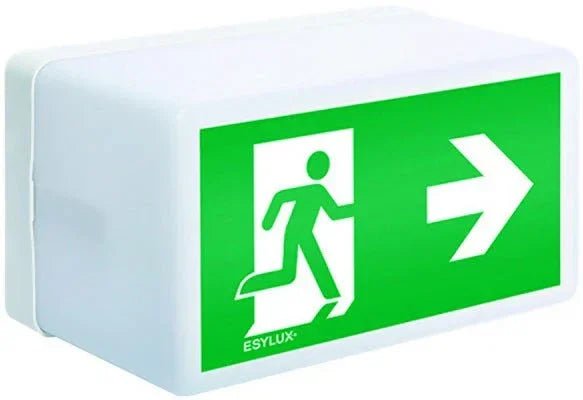

Compact LED safety luminaire from Esylux for emergency exit signposting. Suitable for continuous and standby operation, with integrated single battery (Li-Ion) for 3 h emergency light, IP54, protection class II, 21 m detection range, plug-in connection, for wall and ceiling mounting.
Detailed product description:
This safety luminaire is designed for decentralised emergency lighting operation in commercial and public buildings. It operates with 230 V AC (max. 253 V) and features a current-controlled LED operating device. In mains operation, it can be operated as a continuous circuit, or alternatively in standby mode – the integrated lithium-ion battery (3 h power reserve) automatically takes over in the event of a power failure.
The luminaire is designed for single-sided pictogram orientation and is suitable for marking with stickers. The impact-resistant, white plastic housing (IK03) with an opal diffuser ensures uniform illumination. With IP54, it is protected against dust and splashing water, making it also suitable for corridors, stairwells, ancillary rooms and technical areas.
The function can be tested on site using the integrated test button. The connection terminal is designed as a plug-in connection and allows through-wiring up to 2.5 mm² – ideal for clean installations in existing buildings.
Technical data (precise):
Designation: Safety luminaire / Emergency luminaire
Manufacturer: Esylux Germany
Article group: Safety luminaires
Function: Emergency exit signposting (single-sided)
Operating voltage: 230 V AC (min. 230 V, max. 230–253 V)
Power / System power: 3 W
Switching modes: Continuous operation and standby operation
Power supply: decentralised (single battery)
Battery type: Lithium-ion (NiCd was stated in the text above, Li-Ion in the product data – decisive: Li-Ion here)
Rated operating time: 3 h (min./max. 3 h)
Detection range: 21 m
Colour temperature: 5,000 K (neutral white, clear pictogram recognition)
Protection class: IP54
Protection category: II
Impact resistance: IK03
Mounting: Wall or ceiling mounting
Connection type: Plug-in connection, suitable for through-wiring up to 2.5 mm²
Housing material: Plastic, white
Cover: Opal plastic
Operating device: LED operating device, current-controlled
Light source: LED, not replaceable, 1 luminaire head
Ambient temperature: +5 °C to +45 °C
Dimensions (L×W×H): 250 × 150 × 135 mm
Monitoring: Test button
Suitable for marking type: Sticker/Pictogram
