Description
Features & Functions
Heat pump type: Split air/water
Heating capacity: 9.0 kW
Cooling capacity: 8.7 kW
-
Flow temperatures:
Heating: 15 °C to 65 °C
Cooling: 5 °C to 25 °C
-
Operational reliability:
Refrigerant: R32 (more environmentally friendly than R410A, lower GWP)
-
Net weights:
Hydro module: 146.0 kg

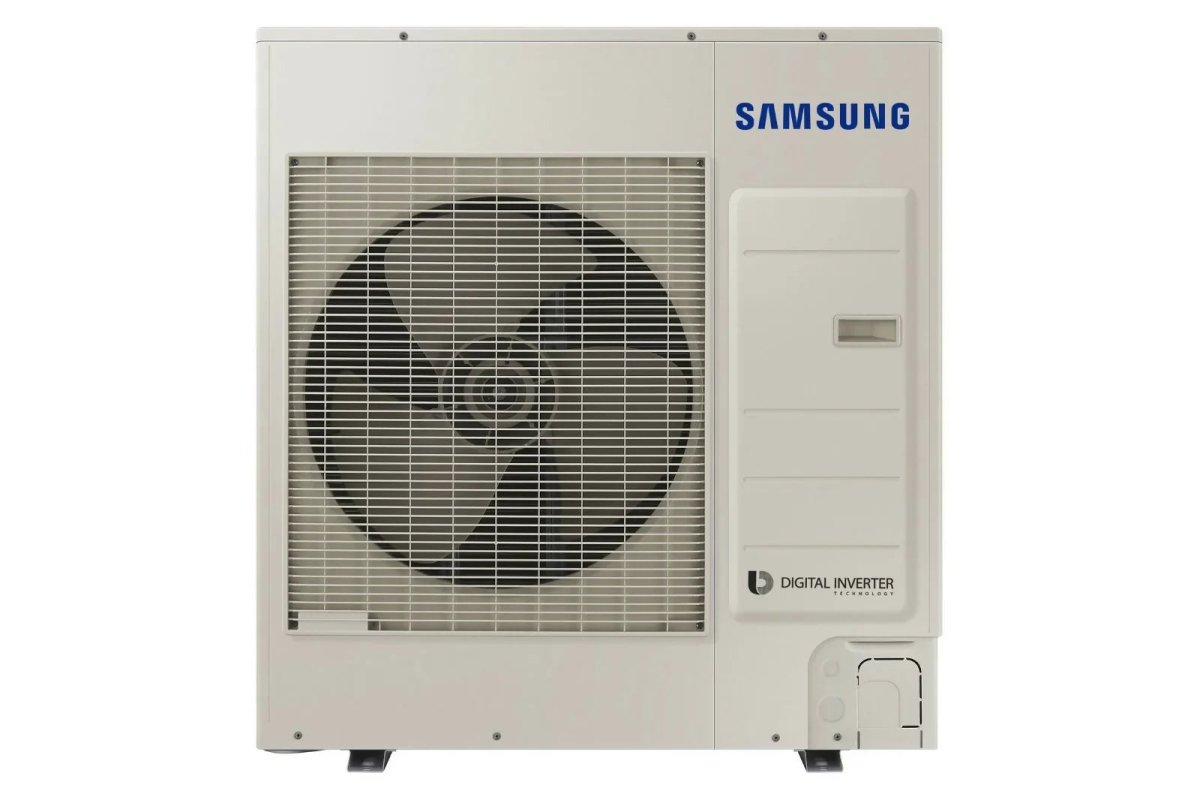

Outdoor unit: 72.0 kg
Energy efficiency
This enables low operating costs and efficient year-round operation.
Technical data (short overview)

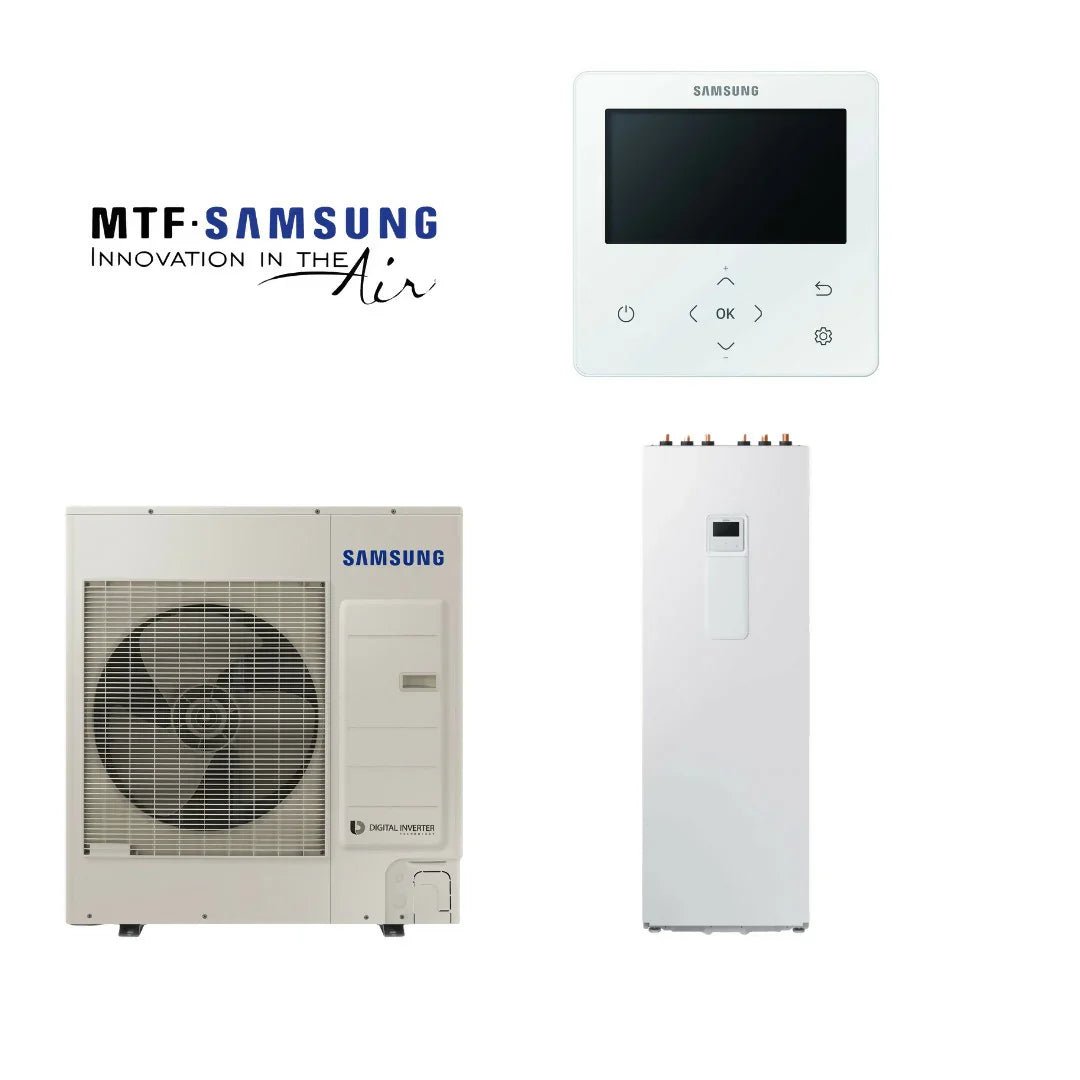

System type: Complete air/water split system with integrated 260 l domestic hot water tank
Voltage / phases: 380–415 V, 3~ / 50 Hz
Heating / Cooling: 9.0 kW / 8.7 kW
Refrigerant: R32, pre-filled with 1.4 kg
Tank volume: 260 l

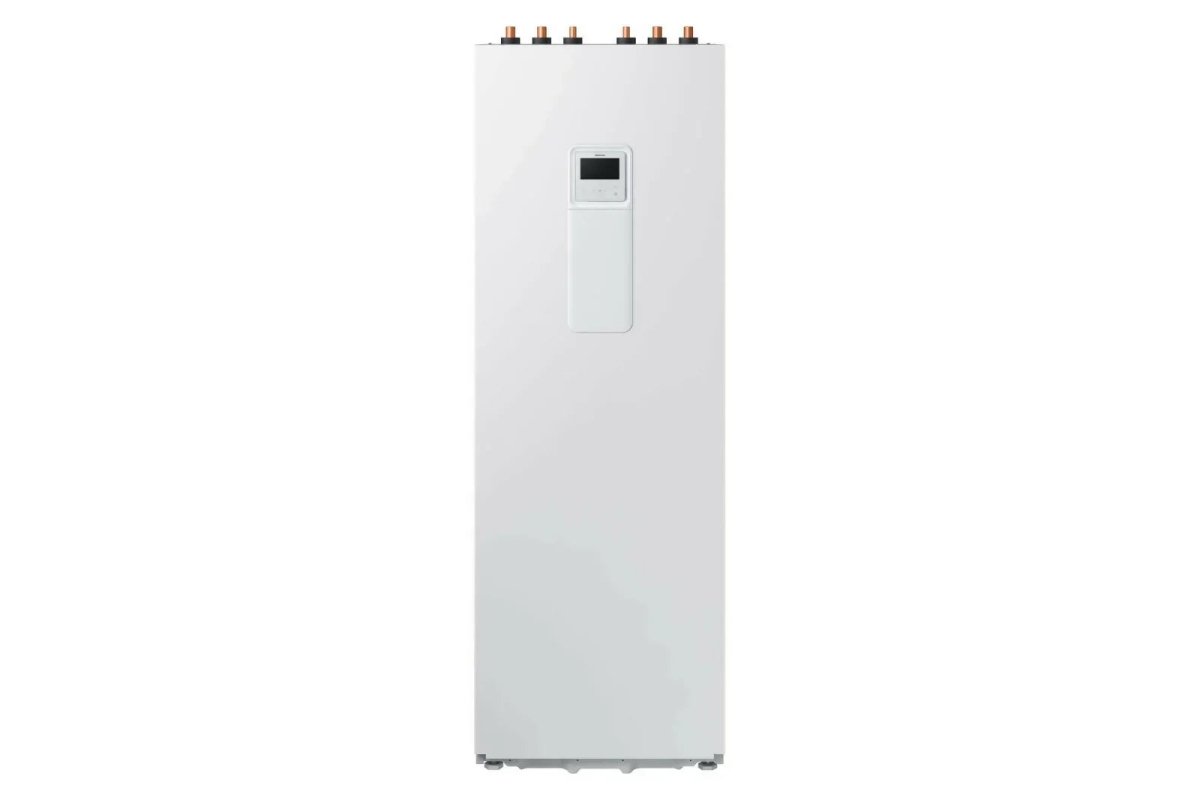

Indoor unit: 1800 x 595 x 700 mm
Weight: 146 kg (indoor), 72 kg (outdoor)
CE Conformity & Technical Drawing
The Samsung ClimateHub Split system is produced by the manufacturer Samsung in accordance with the relevant EU directives (e.g. Low Voltage Directive, EMC Directive, Ecodesign) and is marked with the CE mark.
